Autel EVO II Drone Three Cameras Difference

Autel EVO II Drone Three Cameras Difference

Reading Autel EVO II Drone Three Cameras Difference 4 minutes Next Autel EVO II Pro 6K Camera Parameters Specs

utel Robotics launched a new Autel EVO 2 drone which comes in three different variations EVO II 8K droneEVO II Pro drone, and EVO II Dual drone. The major differences between three variations are in the camera, but all three camera modules are interchangeable, it means you can easily swap over the different cameras and gimbals to upgrade the EVO II drone to EVO II Pro or EVO II Dual.

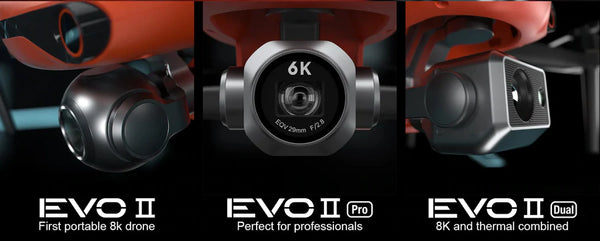

autel evo2 camera

To choose the right EVO II Drone in the three variations, you need to have a full comparison between these three cameras, look at the following comparison you will get you wanted

Autel EVO II Drone Three Cameras Overview

Evo 2 8k – The Autel Evo 2 is the only 8k fold up drone with 1/2” sensor and can capture resolutions up to an incredible 8000 x 6000. With 8k resolution, you can have large prints, grab screen shots and scale without losing image quality.

Purchase: EVO II 8K Camera/ Gimbal

Evo 2 Pro – Has a 1-inch sensor with 6k resolution. It has an adjustable aperture with HDR and intuitive camera controls. The Evo 2 Pro is ideal for cinematography and 3D mapping.

Purchase: EVO II Pro 6K Camera/ Gimbal

Evo 2 Dual – This has a FLIR Boson thermal camera with a resolution up to 640 x 512, along with the 8k camera. This allows the Evo 2 to cover multiple sectors including being used by fire fighters or in search and rescue missions.

Purchase: EVO II Dual Camera/ Gimbal

Main difference:

  1. Sensor: The EVO II 8K drone come with Sony IMX586 (1/2 inch CMOS), EVO II Pro featured Sony IMX383 (1 inch CMOS) while EVO II Dual have FLIR Boson & IMX586 (1/2 inch CMOS) dual sensor.
  2. Pixels: Compared to EVO II Pro camera which comes with 20 Megapixel while EVO II 8K drone featured 48 Megapixel. And EVO II dual have 48 Megapixel and a IR resolution at 640 x 512
  3. Video: EVO II records 8K video at 25fps or 6K video at 30fps while EVO II Pro records 5.5K video at 30 FPS. Excpet 8k camera feature, EVO II Dula camera takes infrared images at a resolution of 640 x 512 and records videos at 60FPS.
  4. Aperture: EVO II 8K Drone and EVO II Dual all have a fixed f1.8 aperture while EVO II Pro have a adjustable aperture within the range of f2.8-11.0.


  1. Zoom: Three cameras all have digital zoom 1 -8 x and 4 x lossless zoom
  2. 10-Big Log, Histogram, AF Support, HDR Support

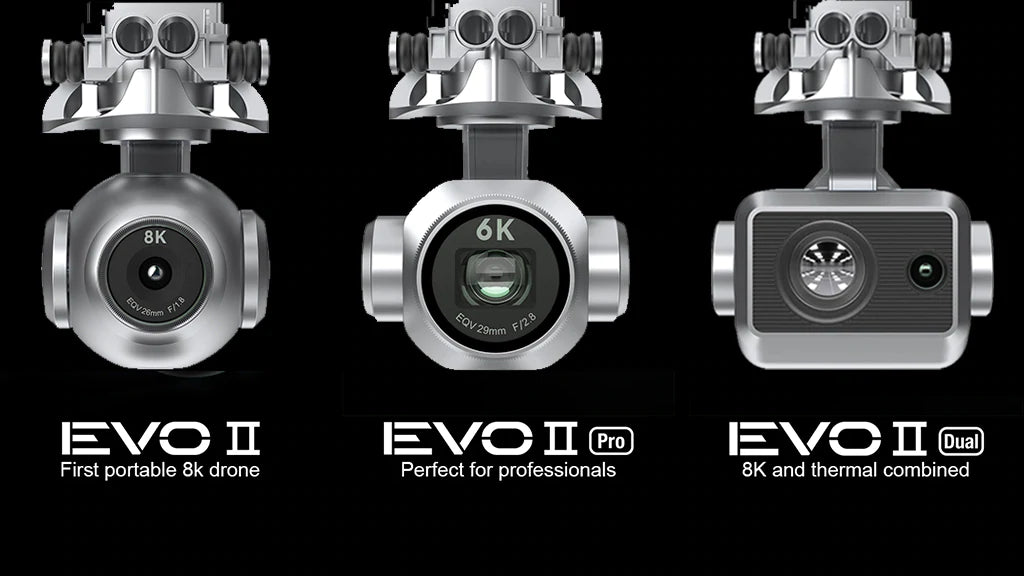

Autel EVO II Drone Three Cameras Comparision Chart

Types Autel evo ii 8k camera/ Gimbal
Autel evo ii pro 6k
Autel EVO II Dual
Sensor Sony IMX586 (1/2" CMOS) Sony IMX383 (1" CMOS) FLIR Boson + IMX586
Effective Pixel 48MP 20MP 48MP & IR: 640*512
Image Resolution 8000 x 6000 (4:3)
7680 x 4320 (16:9)
4000 x 3000 (4:3)
3840 x 2160 (16:9)
5472 x 3648 (3:2)
5472 x 3076 (16:9)
3840 x 2160 (16:9)
visible mode same as 8k
IR: 640*512
Image Format JPG, RAW, JPG+RAW JPG, RAW, JPG+RAW visible mode same as 8k
Video Resolution 8K (7680 x 4320)
6K (5760 x 3240)
4K (3840 x 2160)
2.7K (2720 x 1528)
1080P (1920 x 1080)
6K (5472 x 3076)
5K (4800 x 2700)
4K (3840 x 2160)
2.7K (2720 x 1528)
1080P (1920 x 1080)
visible mode same as 8k
IR: 640*512
Video Format MOV/MP4 MOV/MP4 MOV/MP4
Frame Rate 8k @ 25 fps
6k @ 50 fps
4K @ 30 or 60 fps
2.7k @ 120 fps
FHD @ 120 fps
5.5k @ 60 fps
4k @ 60 or 120 fps
2.7k @ 120 fps
FHD @ 120 fps
visible mode same as 8k
Codec H.264/H.265 H.264/H.265 H.264/H.265
HDR Support Yes Yes Yes
AF Support Yes Yes Yes
Defog Yes Yes NA
Histogram Yes Yes Visible Only
10-Bit Log Yes Yes Visible Only
Aperture fl.8 f2.8-f/11 Visible f1.8
Zoom 1-8x(4x lossless) 1-8x(4x lossless) 1-8x(4x lossless)
ISO Range Video: 100 - 3200
Photo: 100 - 3200
Video: 100 - 6400
Photo:100 - 12800
Visual Light 100 - 3200
Shutter 1/30, 1/8000 to 8 1/80, 1/8000 to 1/30 Visible model same as 8k
Price EVO II 8K EVO II Pro 6K EVO II Dual
