Autel EVO II Pro 6K Camera Parameters Specs

Autel EVO II Pro 6K Camera Parameters Specs

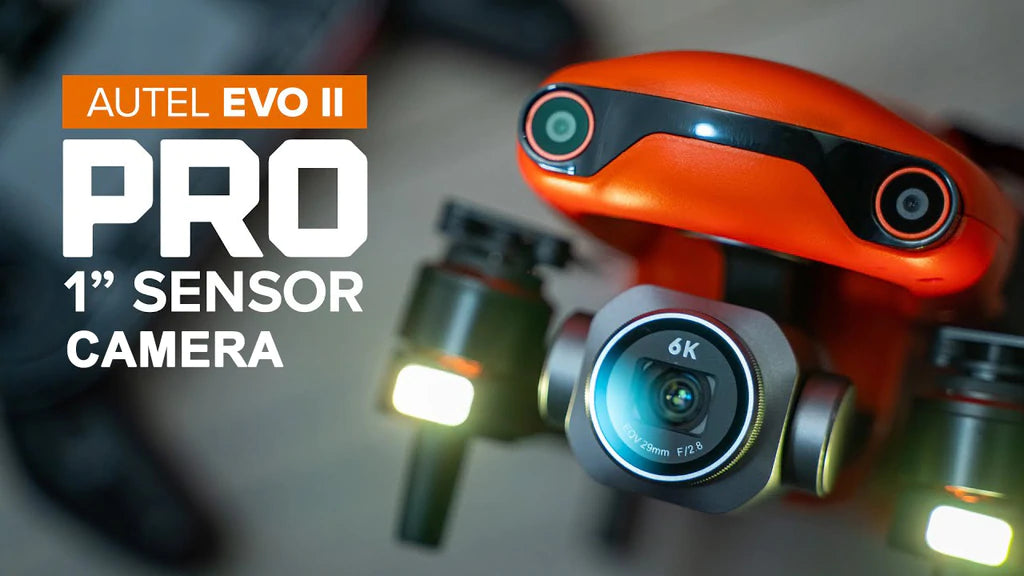

The EVO II Pro's ultra-HD camera with a 1-inch sensor takes photos with a resolution up to 20 MP (5472 x 3648) and records 5.5K video at 30 FPS, with a bit rate of up to 120 Mbps. The lens aperture is adjustable within the range off 2.8-11.0.

EVO II camera parameter bar displays the active photo and video settings, you can change it after you have full knowledge of the camera parameters.

EVO II CAMERA PARAMETERS grande

camera parameter bar displays the active photo and video settings

EVO II Pro 6k Drone Photo Parameters

In Photo mode, the camera parameter bar reflects the following parameter settings.

Parameter Available Values Default Value
Size 5472 x 3648 (3:2)
5472 x 3076 (16:9)
3840 x 2160 (16:9)
3840 x 2160 (16:9)
Format JPG, RAW, JPG+RAW JPG
Mode Single
Burst (3/5)
Time Lapse (2/5/7/10/20/30/60)
AEB (3/5)
Night Beat
Single
The default Burst value is 5
The default Time Lapse is 5
The default AEB value is 3
Exposure Mode Auto, Manual, Shutter Priority Auto
ISO 100, 200, 400, 800, 1600, 3200 If Exposure Mode is set to Auto, the ISO is dependent on the selected EV value.
Shutter 1/80, 1/8000 to 1/30 If Exposure Mode is set to Auto, the default EV is 1/80.
If Exposure Mode is set to Manual, the default shutter speed is dependent on the selected EV value.
EV (Exposure value) 3.0, -2.7, -2.3, -2.0, -1.7, -1.3, -1.0, -0.7, -0.3, 0, +0.3, +0.7, +1.0, +1.3, +1.7, +2.0, +2.3, +2.7, +3.0 If Exposure Mode is set to Auto, the default EV is 0.
If Exposure Mode is set to Manual, the default EV is dependent on the selected ISO and Shutter values.
WB (White balance) Auto, Sunny, Cloudy, Incan, Neon, Custom (2,000K to 10,000K) Auto
The default value for Custom is 6000K
Color NONE, LOG, B&W, NOSTALGIC NONE
Style STD.(Standard) 000, NEUT.(Neutral) -100, LAND.(Landscape) +1+10, Custom Standard 000
The default value for Custom is 000
Digital Zoom 1.0X - 8.0X 1.0X

EVO II Pro 6k Drone Video Parameters

In Video mode the camera parameter bar reflects the following parameter settings.

Parameter Available Values Default Value
PIV (picture in video) Manual, 5s, 10s, 30s, 60s Manual
Format MOV, MP4 MOV
Resolution 6K (5472 x 3076)
5K (4800 x 2700)
4K (3840 x 2160)
2.7K (2720 x 1528)
1080P (1920 x 1080)
4K (3840 x 2160)
Frame Rate 120 FPS, 60 FPS, 50 FPS, 48 FPS, 30 FPS, 25 FPS, 24 FPS The default value depends on the selected resolution.
Exposure Mode Auto, Manual, Aperture Priority, Shutter Priority Auto
ISO 100, 200, 400, 800, 1600, 3200, 6400 If Exposure Mode is set to Auto, the default ISO is dependent on the selected resolution and frame rate.
Shutter 1/80, 1/8000 to 1/30 If Exposure Mode is set to Manual, the default value is 1/80.
If Exposure Mode is set to Auto, the default shutter speed is dependent on the selected resolution and frame rate.
EV -3.0, -2.7, -2.3, -2.0, -1.7, -1.3, -1.0, -0.7, -0.3, 0, +0.3, +0.7, +1.0, +1.3, +1.7, +2.0, +2.3, +2.7, +3.0 If Exposure Mode is set to Auto, the default value is 0.
If Exposure Mode is set to Manual, the default EV is dependent on the selected resolution and frame rate
WB Auto, Sunny, Cloudy, Incan, Neon, Custom (2,000K-10,000K) Auto
The default value for Custom is 6000K
Color NONE, LOG, B&W, NOSTALGIC NONE
Style STD.(Standard) 000, NEUT.(Neutral) -100, LAND.(Landscape) +1+10, Custom Standard 000
The default value for Custom is 000
Digital Zoom 1.0X - 8.0X 1.0X
